Plant List

Machine Capacity

Explore the full range of in house machining capabilities, including advanced CNC milling, turning, and multiaxis operations engineered to handle everything from precision prototypes to high volume production runs.

Image of a Hurco VM20i 3 Axis machine

Hurco
VM20i

Our 3 axis machining centre features a small footprint with a large work cube. No other mill packs as much productivity into an efficiently designed package.

Specifications:

Travel 1016 x 508 x 508 mm
Table Size 1168 x 508 mm
Spindle 10000 rpm, 102 Nm @ 1450 rpm
Tool Capacity 24 CAT/BT 40
Machine Weight 4108 kg
Image of a Hurco VM10i 3 Axis machine

Hurco
VM10i

Our 3 axis machining centre offers a compact design without compromising on workspace. No other mill delivers such high productivity in such an efficiently engineered package.

Specifications:

Travel 660 x 406 X 508 mm
Table Size 762 x 406 mm
Spindle 10000 rpm, 73.6 Nm @ 1450 rpm
Tool Capacity 24 CAT/BT 40
Machine Weight 2818 kg
Image of a Hurco VM10 3-Axis machine

Hurco
VM10

The VM10 machining center features huge work cubes and a small footprint. It combines more Y axis and Z axis travel, a longer table, and a faster spindle for bigger productivity.

Specifications:

Travel 660 x 406 x 508 mm
Table Size 762 x 356 mm
Spindle 15000 rpm, 73 Nm @ 1,450 rpm
Tool Capacity 20 CAT/BT 40
Machine Weight 6400 kg
Image of a Doosan Lynx 2100lb machine

Doosan
Lynx 2100LB

Featuring high accuracy compact horizontal lathes, our Lynx machine produces superior surface finishes and offer multiple options including live tooling to provide a customisable solution to your turning needs.

Specifications:

Chuck Size 8 inch
Bar Capacity 65 mm
Spindle 4500 rpm, 169 Nm
Max. Turning Diameter 550 mm
Max. Turning Length 350 mm
Image of a XYZ SMX SLV machine

XYZ
SMX SLV

Our SMX SLV machine can handle more complex components compared to a standard manual turret mill. Utilising Prototrak control making it perfect for one off prototypes and small batch runs.

Specifications:

Cross Travel 431 mm
Longitudinal Travel 762 x 356 mm
Spindle 15000 rpm, 73 Nm @ 1,450 rpm
Tool Capacity 20 CAT/BT 40
Machine Weight 6400 kg
Image of a Bridgeport Series 1 Mill machine

Bridgeport
Series 1 Mill

Our Series 1 Mill is a versatile milling, drilling and boring machine and continues to fulfill the industry’s need for an accurate, reliable milling machine.

Specifications:

Travel 914 x 306 mm
Table Size 299 x 1245 mm
Spindle 500 - 4200 rpm
Tool Capacity MS 9.5mm / BR 152mm (DIA)
Machine Weight 875 kg
Image of a Keyence IM 8020 machine

Keyence
IM 8020

Our optical inspection tool provides us with up to 300 highly accurate measurements in seconds allowing us to measure small, large, and three dimensional parts. Greatly reducing the resources spent on measurement work.

By preparing a program file with measurement points and conditions, up to 300 dimensions per part and up to 100 parts can be measured simultaneously. 360° Rotary Unit Simultaneous measurement of all surfaces of a 3D part.

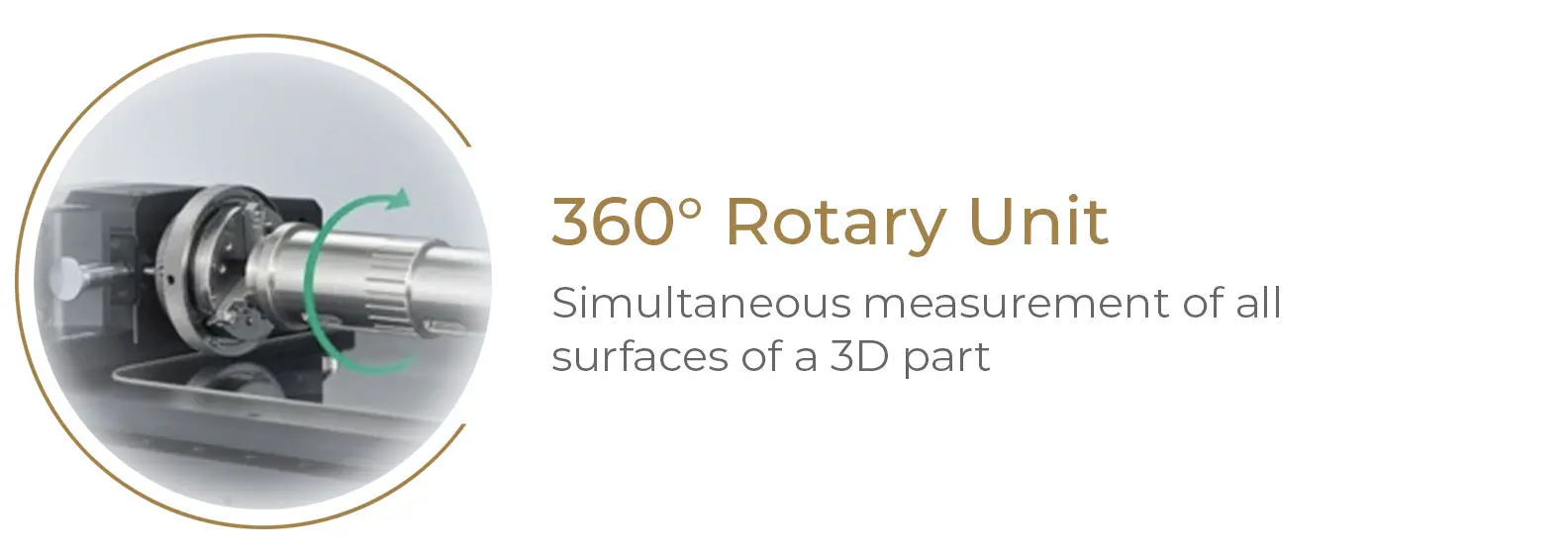

Photo showing the 360° Rotary Unit of the Keyence IM 820 machine

Visualisation

2D & 3D modelling

Our workshop is equipped with Autodesk Fusion and OneCNC CAD/CAM, enabling the rapid and precise creation of parts and prototypes from 2D and 3D models.

Supported file types:

.DGN .DXF .IGES .VDA .VDAFS
.STP .STEP .3DM .SAT .STL

Inventory

Full Plant List

If you require a custom part or are interested in designing a prototype, please get in touch to discuss the details of your project.

Get a Quote
  • 1 x ECOCA MT-208 CNC Lathe
  • 1 x Lynx 2100LM CNC Lathe
  • 2 x Hurco VM20 VMC
  • 1 x HURCO TMX8 CNC Lathe
  • 2 x HURCO VM1 VMCs
  • 1 x HURCO VM10 VMC
  • 1 x XYZ SMX SLV
  • 1 x XYZ 3000 Manual Mill
  • 2 x Bridgeport Manual Mills
  • 3 x Colchester Triumph 2000 Lathes
  • 1 x Colchester Mastiff 1400 Lathe
  • 1 x Qualters and Smith R3 Radial Drill
  • 1 x Startrite 14-5-5 Bandsaw
  • 1 x Jones and Shipman 540 Surface Grinder
  • Slotting Machine
  • Various Pillar Drills
  • Technomark Dot Peen Engraver
  • Keyence IM 8000
  • 3D Printer
  • Laser Engraver
